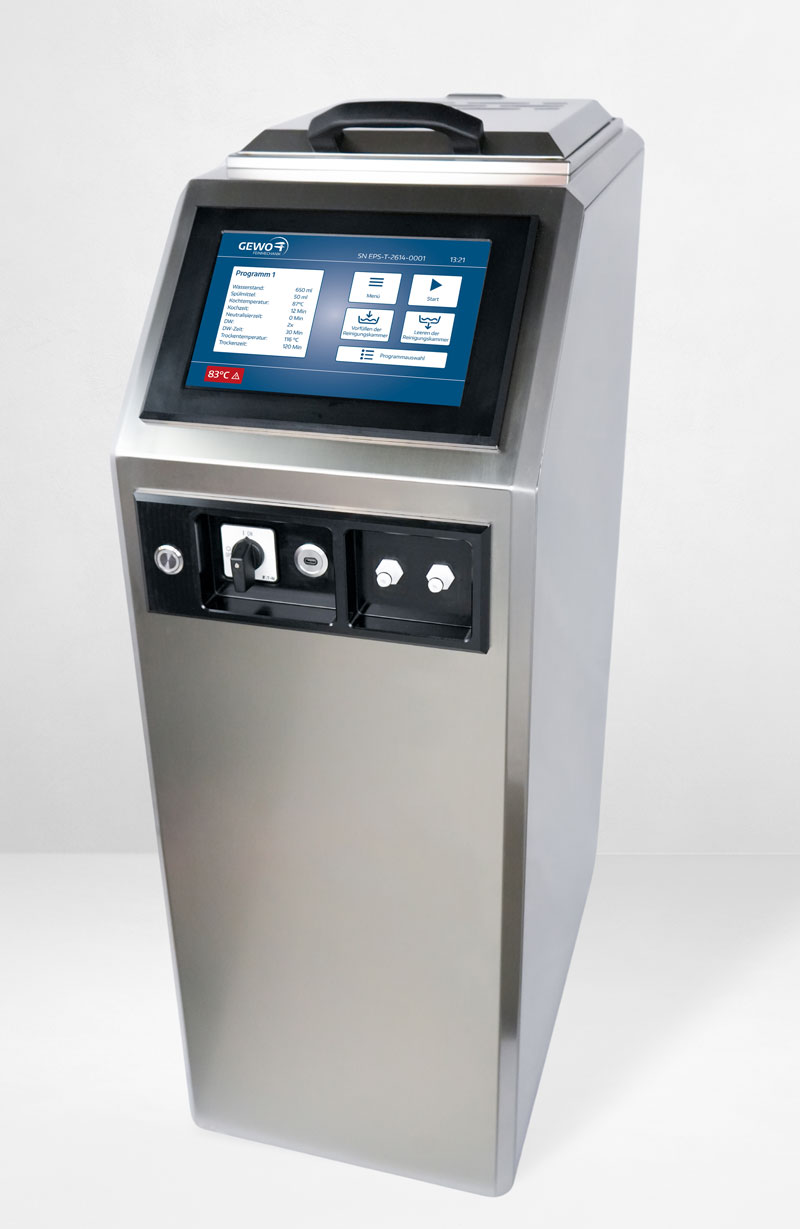

Pipette rinser
Model EPS
with touch display
Fully electronic pipette washer with automatic rinsing agent dosing, which allows the user to freely determine all parameters of the cleaning process and thus adapt them to the degree of contamination of the pipettes. Both pre-programmed and individual programs ensure excellent cleaning results even with changing requirements.
Advantages
Intuitive operation with touch display and rotary/push switch
Free program creation
Fully automatic program sequence
Adjustable detergent quantity
Adjustable cleaning temperature
Program sequence control
Error indication on the display
Real-time monitoring of fill levels and temperatures
Data retrievable via external connection
Validation mode
Password-protected access areas
Program sequence

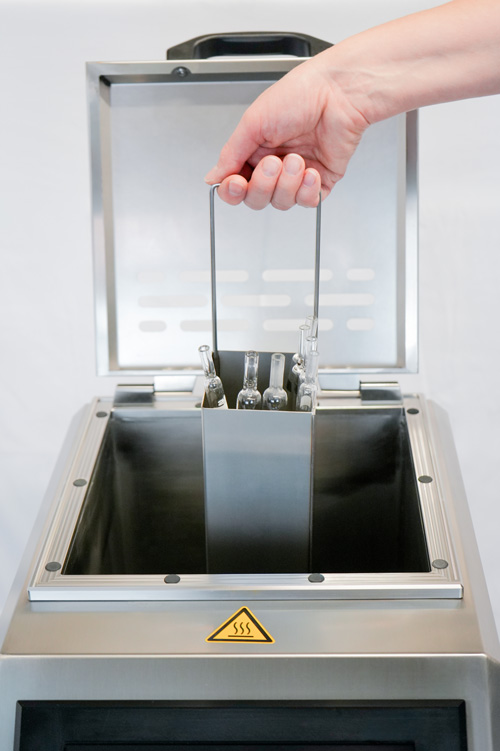

- Loading the cleaning container with pipettes through the quiver system
- Selecting the cleaning program and starting the wash cycle
- Cleaning program sequence (fully automatic)
- Removing the clean and dried pipettes from the cleaning container
Technical data
- Connected loads
- Consumption values
- Temperature range
- Programs
- Capacity
- Weight/material
- Dimensions
- Accessories included
- Capacity
Current: |
230 V/20 A |
Performance: |
3.0 kW |
Process water: |
3/4”; max. 60°C Inlet temperature |
Demineralized water: |
3/4” |
Water pressure: |
between 0.5 and 6 bar |
Waste water: |
DN20 |
lower |
High water level |
||
Energy: |
4.9 kWh | 7 kWh | |
Demineralized water: |
max. 90 liters | max. 130 liters | |
Process water: |
max. 180 liters | max. 270 liters | |
Washing-up liquid: |
Individually adjustable according to customer requirements |
Cleaning: |
30°C or 96°C Individually adjustable according to customer requirements |
Drying: |
130°C Individually adjustable according to customer requirements |
pre-assigned, freely customizable
max. 9 quivers
50 kg/stainless steel housing
Accessories: 8 kg
Width: |
325 mm |
Depth: |
530 mm |
Height: |
920 mm (top edge of appliance with closed lid) |
Height: |
1240 mm (with lid open) |
6 pcs. quiver 80 x 80 x 415 mm
3 pcs. quiver 80 x 80 x 300 mm
9 numbering clips for quiver identification
5 liters of liquid dishwashing detergent
Technical documentation and connection set
1 pc. Connection set:
1 x power cable
2 x water inlet and
1 x water drain hose
1 x 90° hose bend
6 x hose clamp
4 x hose coupling
4 x seal
Measuring pipettes
Volume: |
1.0 ml | 2.0 ml | 5.0 ml | 10.0 ml | 20.0 ml | 50.0 ml | 100.0 ml |
Per dishwasher: |
1305 | 1080 | 810 | 441 | 324 | 144 | 54 |
Full pipettes
Volume: |
2.0 ml | 3.0 ml | 5.0 ml | 10.0 ml | 20.0 ml | 50.0 ml | 100.0 ml |
Per dishwasher: |
900 | 576 | 324 | 225 | 144 | 54 | 20 |
Accessories
As a service, we offer the purchase of the necessary accessories such as quivers, bases and cleaning agents.
